Ks1,974,100.00
*Specification below
*English version below

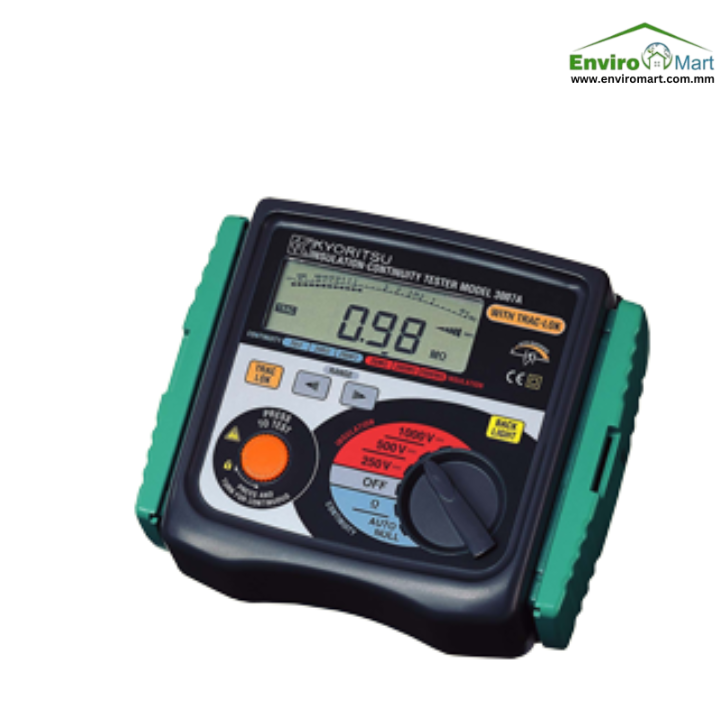

English version
Bar graph to display insulation resistance
Displays the value of external AC voltage with flashing symbol
Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value
Trac-Lok mode to conserve battery life on insulation and continuity tests
Live circuit warning buzzer
Releasing the test button automatically discharges the charges stored in the circuit under test
Backlight function to view the test results in dimly lit areas
200mA measuring current on continuity testing
Specification
| Insulation Resistance | |
| Test Voltage | 250V/500V/1000V |
| Measuring Ranges (Mid-scale Value) |
20MΩ/200MΩ/2000MΩ |
| Output Voltage on open circuit |
Rated test voltage+20%, -0% |
| Nominal Current | 1mA DC min. |
| Output Short Circuit Current |
1.5 mA DC approx. |
| Accuracy | |±1.5%rdg±5dgt (20MΩ/200MΩ) |±10%rdg±3dgt (2000MΩ) |
| Continuity Test | |
| Measuring Ranges (Mid-scale Value) |
20Ω/200Ω/2000Ω |
| Output Voltage on open circuit |
7~12V DC |
| Measuring Current | 200mA DC min. |
| Accuracy | |±1.5%rdg±5dgt (20Ω) |±1.5%rdg±3dgt (200Ω/2000Ω) |
| AC Voltage | |
| AC Voltage range | 0-600V AC |
| Accuracy | |±5%rdg±3dgt |
| General | |
| Safety Standard | IEC 61010-1 CAT.III 300V Pollution Degree 2 IEC 61010-2-031 IEC 61557-1/2/4 |
| IP Rating | IEC 60529-IP54 |
| EMC Standard | IEC 61326-1 |
| Withstand Voltage | 3700V AC for 1 minute |
| Power Source | R6P (AA) (1.5V) × 8 |
| Dimensions | 185(L) × 167(W) × 89(D)mm |
| Weight | 990g approx |
| Accessories | 7122B (Test leads) Pouch for test leads 8923 (F500mA/600V fuse) × 2 R6P (AA) × 8 Shoulder Strap Instruction Manual |
