Ks504,000.00
*Specification below
*English version below
English version

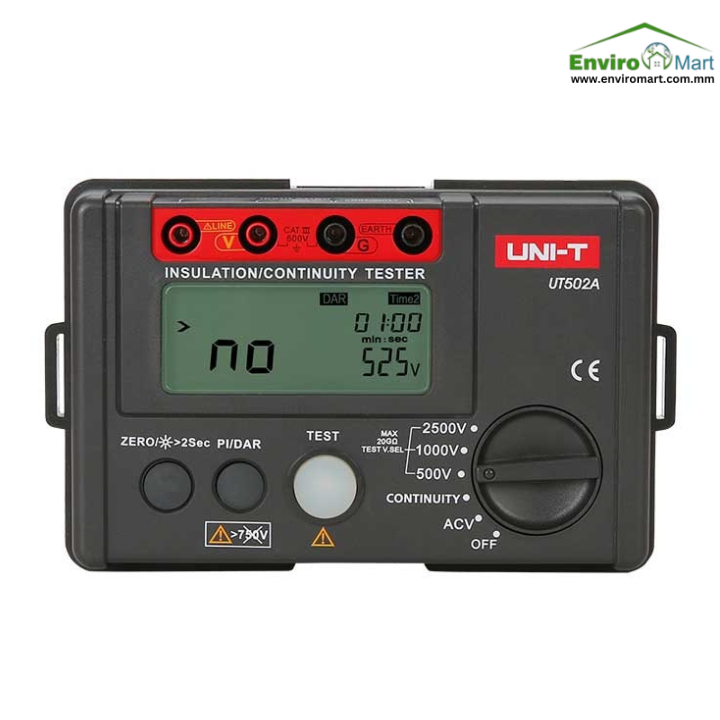

UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground. UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption). These are dieal tools for ensuring transformers, genera-tors, high voltage motors, capacitors, cables, arresters and other electrical equipment that can oprate in a safe and accurate manner.
Specification
Test voltage: 2500V
Insulation resistance:
500V 0MΩ~99.9MΩ ±(3%+5)
100MΩ~5GΩ ±(5%+5)
1000V 0MΩ~99.9MΩ ±(3%+5)
100MΩ~5GΩ ±(5%+5)
2500V 0MΩ~99.9MΩ ±(3%+5)
100MΩ~9.9GΩ ±(5%+5)
10GΩ~20GΩ ±(10%+5)
Short-circuit current: <2mA
Low resistance (Ω): 0.01Ω~200Ω (about 5.0V/>200mA) ±(2%+3)
Comparison function: No
Polarization index (PI): Yes
Dielectric absorption ration (DAR): Yes
Low resistance: 200Ω
Display count: 2000
True RMS: No
Auto range: Yes
DC voltage: No
AC voltage: 750V
High voltage prompt: Yes
LCD backlight: Yes
Analog bar: No
Low battery indication: Yes
Overload prompt: Yes
Light alarm: Yes
Buzzer alarm: Yes
Auto power off: Yes
Meets IEC 61557: 61557-1:2007, 61557-2:2007, 61557-4:200
Category ratings: CAT III 600V
Power: 1.5V battery (LR6) x 6
Display: 70.6mm x 34mm
Product color: Red and grey
Product net weight: 500g
Product size: 150mm x 100mm x 71mm
Standard accessories: Batteries, test leads, alligator clips, gallus, test probes
