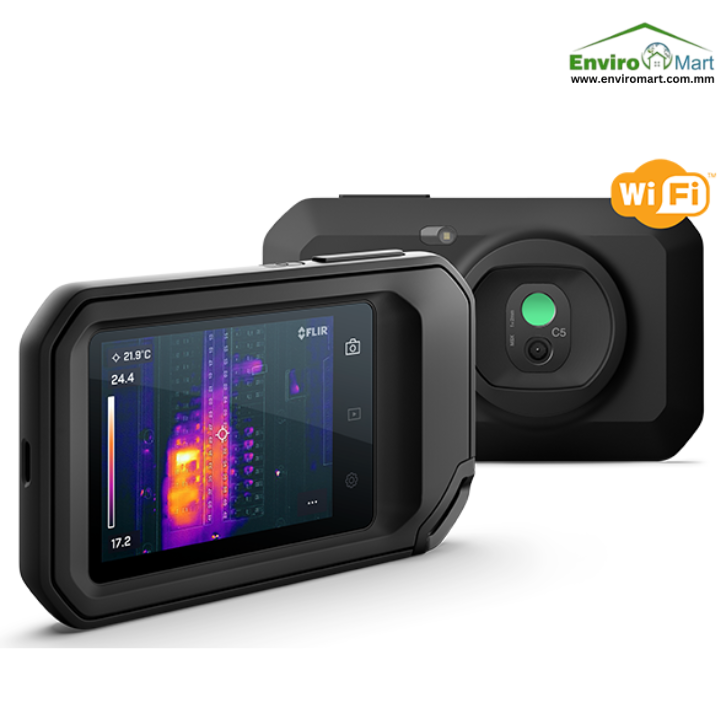

C5: Handheld IR camera measures temperatures from -20 to 400°C (-4 to 752°F)
IDENTIFY AND TROUBLESHOOT – Quickly find hidden faults and reduce diagnostic time with MSX and 160 x120 true thermal imaging (19,200 pixels)
PATENTED TECHNOLOGY – Patented MSX embosses visual details on the thermal image to create sharper, easier to understand picture
DOCUMENT AND SHARE: Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
2-10 Thermal Camera Warranty from FLIR, 2 Years parts and labor coverage on the camera, 10 Years coverage on the detector – the most vital part of the whole camera.
Overview
• IR sensor: 160 × 120 (19,200 pixels)
• Thermal sensitivity/NETD: <70 mK
• Field of view (FOV): 54° × 42°
• Minimum focus distance:
Thermal: 0.1 m (3.94 in)
MSX®: 0.3 m (11.8 in)
• Image frequency: 8.7 Hz
• Focus: Focus free
• Spectral range: 8–14 µm
• Screen size: 3.5 in
• Visual camera: 5 MP
• Digital camera focus: Fixed Image Presentation
• Image adjustment:
Automatic level and span
Manual level and span
1-Touch level and span
• Image modes :
Infrared image
Visual image
MSX (Embossed visual details on thermal image)
Picture-in-picture (IR area on visual image)
• Gallery: Thumbnails and custom folder structure
•Color palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
• Screen rotation: Yes
• Touchscreen: Capacitive touch Measurement & Analysis
• Object temperature range: -20 to 400°C (-4 to 752°F)
Accuracy:
At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)
0 to 100°C (32 to 212°F): ±3°C (±5.5°F)
100 to 400°C (212 to 752°F): ±3%
• Measurement functions:
Spot
Box with max./min.
• Measurement correction:
Emissivity; matt/semi-matt/semi-gloss + custom value
Reflected apparent temperature
Atmospheric compensation Image Storage & Streaming
• Storage media: Internal memory and onboard FLIR Ignite cloud connectivity
(with Wi-Fi)
• Image storage capacity: >5000 images
• Image file format: Standard JPEG, 14-bit measurement data included Communication & Connectivity
• Wi-Fi®: 802.11 a/ac/b/g/n (2.4 and 5 GHz)
• USB: USB 2.0, Type-C connector
• Bluetooth®: PAN
• Image upload: Directly upload images to FLIR Ignite cloud library and services Additional Information
• Battery type: Rechargeable built-in Lithium ion battery
• Battery operating time: 4 hours
• Charging system: USB-C (1 A)
• Charging time: 2 hours
• External power operation: 5 V, USB-C
• Operating temperature range: -10 to 50°C (14 to 122°F)
• Storage temperature range: -40 to 70°C (-40 to 158°F)
• Encapsulation: Camera housing and lens: IP54 (IEC 60529)
• Drop test: Designed for 2 m (6.6 ft)
• Weight (including battery): 0.19 kg (0.42 lb)
• Size (L × W × H): 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
• Tripod mounting (built-in): UNC ¼”-20
