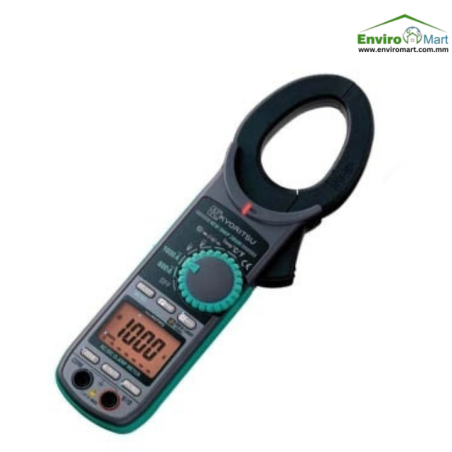

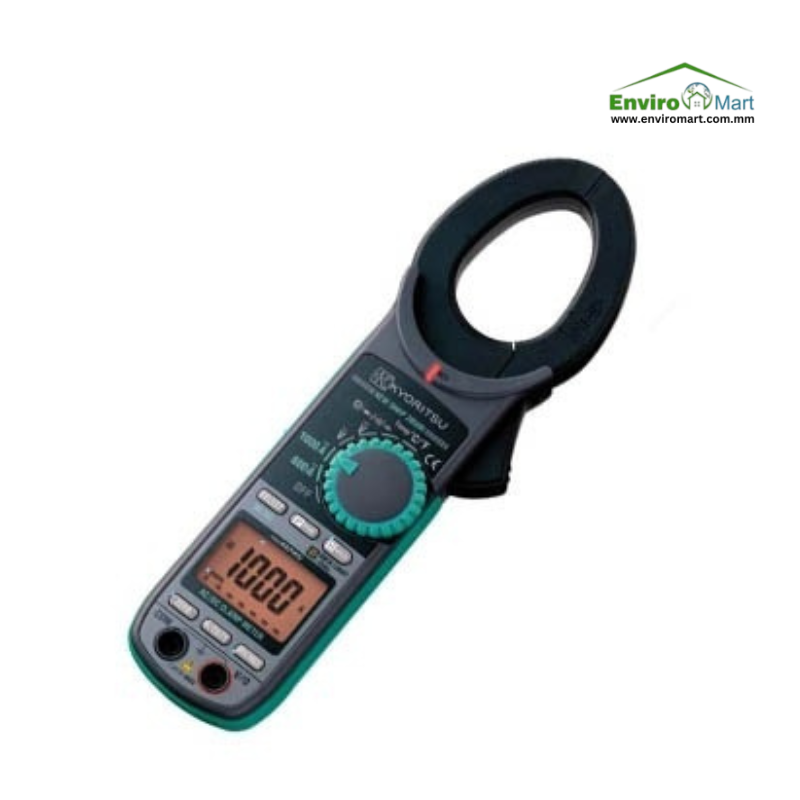

KYORITSU 2046R Clamp Meter (600A; True RMS);
*English Version Below,
Kyoritsu 2046R သည် ကလမ် မီတာ (clamp meter) နှင့် မာလ်တီမီတာ လုပ်ဆောင်ချက်များကို ဘက်စုံသုံး ကိရိယာတစ်ခုအဖြစ် ပေါင်းစပ်ထားသော ပရော်ဖက်ရှင်နယ်အဆင့် ဒစ်ဂျစ်တယ် ကလမ် မီတာ ဖြစ်သည်။ ၎င်းသည် True RMS စွမ်းရည်နှင့် AC နှင့် DC လျှပ်စီး နှစ်မျိုးလုံးကို တိုင်းတာနိုင်စွမ်းတို့ကြောင့် လျှပ်စစ်နှင့် ပြုပြင်ထိန်းသိမ်းမှု လုပ်ငန်းများစွာအတွက် ရေပန်းစားသော ရွေးချယ်မှုတစ်ခု ဖြစ်သည်။
*English Version,
The Kyoritsu 2046R is a professional-grade digital clamp meter that combines the functions of a clamp meter and a multimeter into one versatile tool. It's known for its True RMS capability and its ability to measure both AC and DC current, making it a popular choice for a wide range of electrical and maintenance applications.
Specification of KYORITSU 2046R Clamp Meter (600A; True RMS) ;
| AC A | 0 - 600.0A ±2.0%rdg±5dgt (50/60Hz) ±3.5%rdg±5dgt (40 - 500Hz) |
|---|---|
| DC A | 0 - 600.0A ±1.5%rdg±5dgt |
| AC V | 6/60/600V Auto Ranging ±1.5%rdg±4dgt (50/60Hz) ±3.5%rdg±5dgt (40 - 400Hz) |
| DC V | 600m/6/60/600V Auto Ranging ±1.0%rdg±3dgt |
| Ω | 600/6k/60k/600k/6M/60MΩ (Auto Ranging) ±1%rdg±5dgt (600 - 6M) / ±5%rdg±8dgt (60M) |
| Continuity buzzer | Buzzer Sounds at 100Ω |
| Temperature | -50ºC - +300ºC (With the use of Temperature probe 8216) |
| Frequency/DUTY | 10/100/1k/10kHz (Auto Ranging) / 0.1 - 99.9% |
| Conductor size | Ø33mm |
| Safety Standard | IEC 61010-1 CAT IV 600V, IEC 61010-031, IEC 61010-2-032, IEC 61326 |
| Power source | R03 (1.5V) (AAA) × 2 |
| Dimensions | 243(L) × 77(W) × 36(D)mm |
| Weight | 300g |
| Included Accessories | 7066A (Test leads) 9094 (Carrying case) Instruction Manual |
| Optional Accessories | 8008 (Multi-Tran) 8216 (Temperature probe) |
