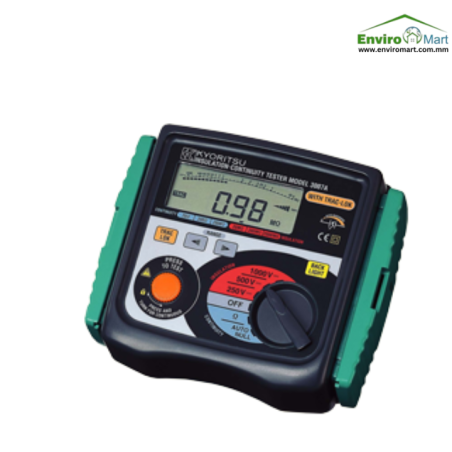

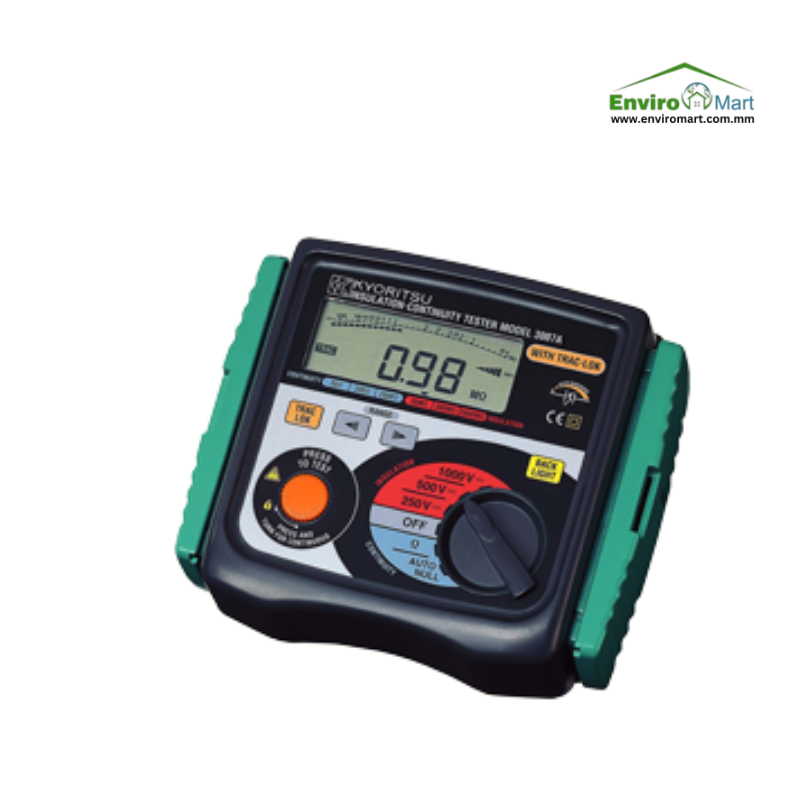

KYORITSU 3007A Digital Insulation / Continuity Tester (1000V/2GΩ)

*English Version Below,

Kyoritsu 3007A သည် ပရော်ဖက်ရှင်နယ်အဆင့် ဒစ်ဂျစ်တယ် လျှပ်ကာနှင့် ကွန်တီနျူတီ စမ်းသပ်စက် (digital insulation and continuity tester) ဖြစ်ပြီး Megohmmeter သို့မဟုတ် Megger ဟုလည်း ခေါ်ဆိုကြသည်။ ၎င်းကို လျှပ်စစ်ပစ္စည်းကိရိယာများနှင့် တပ်ဆင်မှုများစွာတွင် တိကျပြီး ယုံကြည်စိတ်ချရသော လျှပ်ကာ ခုခံအား စမ်းသပ်မှုများ ပြုလုပ်ရန် လိုအပ်သည့် လျှပ်စစ်ပညာရှင်များ၊ ပြုပြင်ထိန်းသိမ်းမှု နည်းပညာရှင်များနှင့် အင်ဂျင်နီယာများအတွက် ထုတ်လုပ်ထားသည်။

*English Version,

The Kyoritsu 3007A is a professional-grade digital insulation and continuity tester, also known as a Megohmmeter or Megger. It's designed for electricians, maintenance technicians, and engineers who need to perform accurate and reliable insulation resistance tests on a wide range of electrical equipment and installations.

Specification of KYORITSU 3007A Digital Insulation / Continuity Tester (1000V/2GΩ);

Insulation Resistance
Test Voltage 250V/500V/1000V
Measuring Ranges
(Mid-scale Value)
20MΩ/200MΩ/2000MΩ
Output Voltage
on open circuit
Rated test voltage+20%, -0%
Nominal Current 1mA DC min.
Output Short
Circuit Current
1.5 mA DC approx.
Accuracy |±1.5%rdg±5dgt (20MΩ/200MΩ)
|±10%rdg±3dgt (2000MΩ)
Continuity Test
Measuring Ranges
(Mid-scale Value)
20Ω/200Ω/2000Ω
Output Voltage
on open circuit
7~12V DC
Measuring Current 200mA DC min.
Accuracy |±1.5%rdg±5dgt (20Ω)
|±1.5%rdg±3dgt (200Ω/2000Ω)
AC Voltage
AC Voltage range 0-600V AC
Accuracy |±5%rdg±3dgt
General
Safety Standard IEC 61010-1 CAT.III 300V Pollution Degree 2
IEC 61010-2-031 IEC 61557-1/2/4
IP Rating IEC 60529-IP54
EMC Standard IEC 61326-1
Withstand Voltage 3700V AC for 1 minute
Power Source R6P (AA) (1.5V) × 8
Dimensions 185(L) × 167(W) × 89(D)mm
Weight 990g approx
Accessories 7122B (Test leads) Pouch for test leads
8923 (F500mA/600V fuse) × 2
R6P (AA) × 8
Shoulder Strap
Instruction Manual
5 Items
